Medical Suction Unit

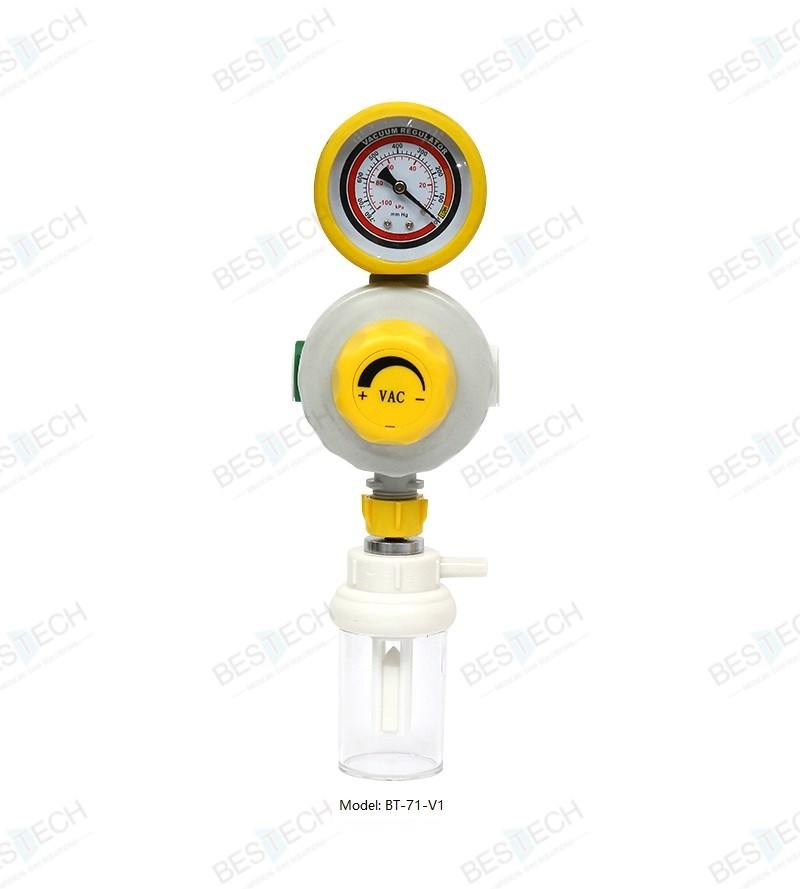

BT-71-V1 Medical Suction Unit:

  Suitable for mounting on wall and BHU.

  Especially suit for pediatrics and critical care units.

  Negative pressure continually adjustable, and may set to be a fixed pressure.

  Vibration proof secure regulator with clear scaled pressure gauge.

  Various connection method down the regulator, may connect to safety bottle or connect to 1L, 2L collection jar.

  Safety bottom and collection jar with anti-spillover function, may protect regulator and pressure gauge from damaging by over flow.

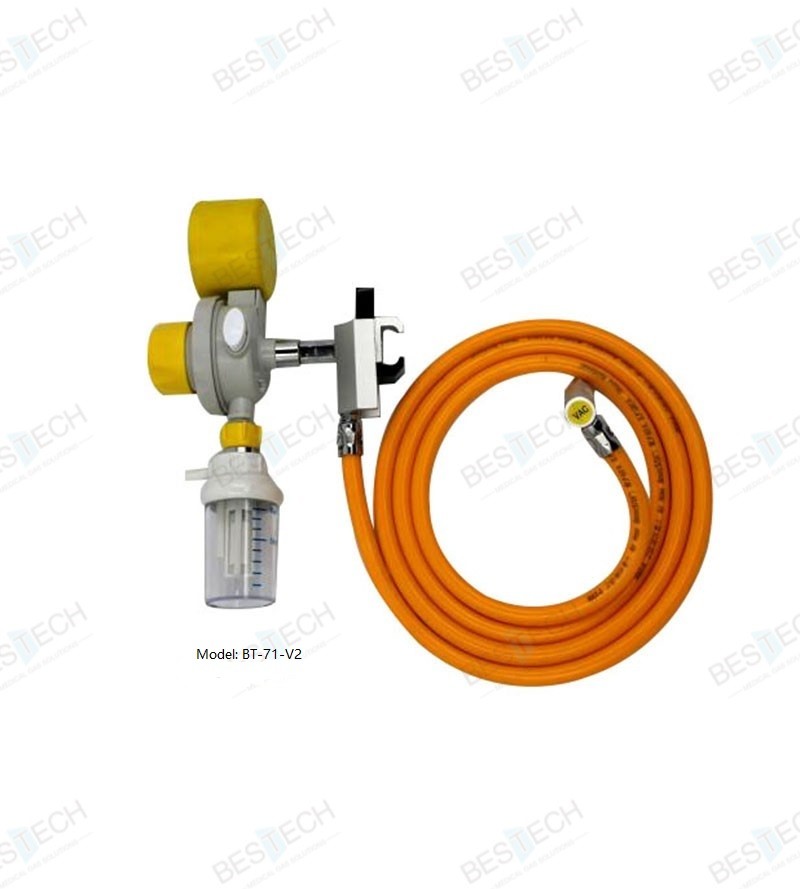

BT-71-V2 Medical Suction Unit:

  Suitable for mounting on BHU and Pendant.

  With hanger clamp, gas hose and quick connector.

  Negative pressure continually adjustable, and may set to be a fixed pressure.

  Vibration proof secure regulator with clear scaled pressure gauge.

  Various connection method down the regulator, may connect to safety bottle or connect to 1L, 2L collection jar.

  Safety bottom and collection jar with anti-spillover function, may protect regulator and pressure gauge from damaging by over flow.

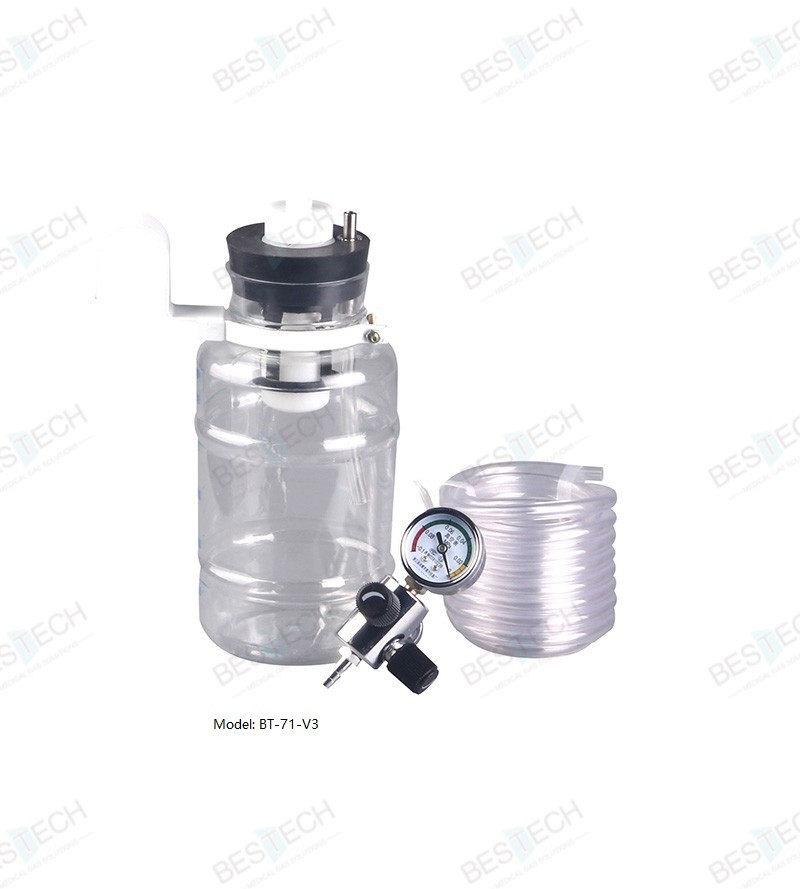

BT-71-V3 Medical Suction Unit:

  Suitable for mounting on wall and BHU.

  Especially suit for pediatrics and critical care

   Suitable for: Medical centralized suction system, for suctioning pus, blood, sputum, etc, working under negative pressure.

  Suction pressure adjustable within -0.07-1Mpa, volume over 2.5L/min

  Suction bottom may not be deformed if negative pressure no more than -0.07Mpa.

  The buoy will seal off the suction inlet when it reach the max scaled volume.

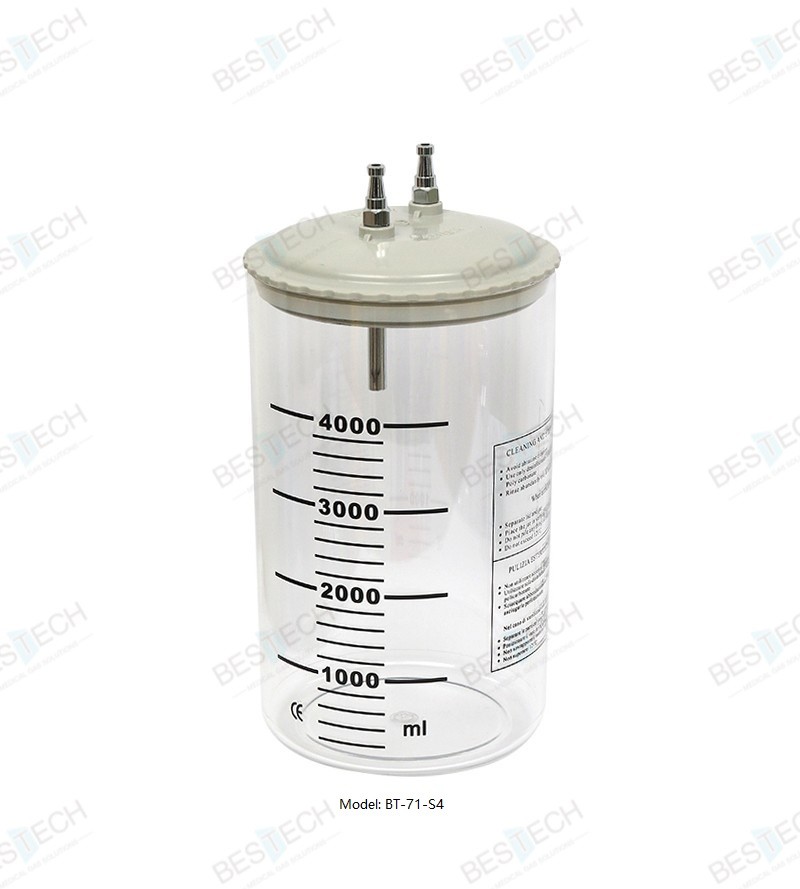

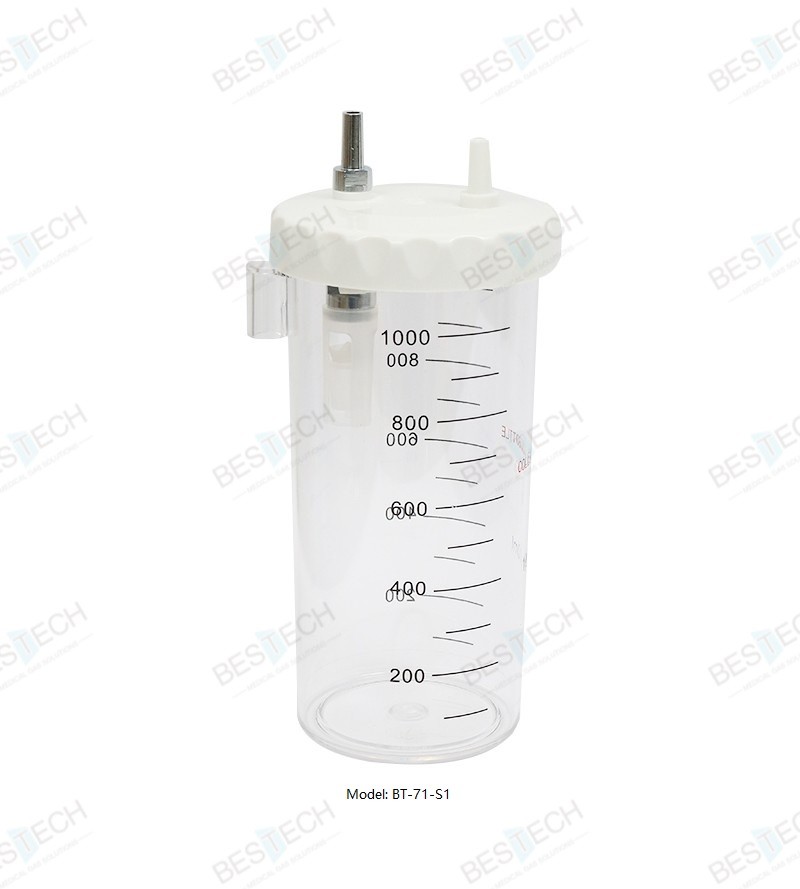

  Suction bottle made up of high quality PTE, volume optional 1100ml, 2000ml, 2500ml, 3000ml, 5000ml.

  Different standard adaptors available for different gas outlets.

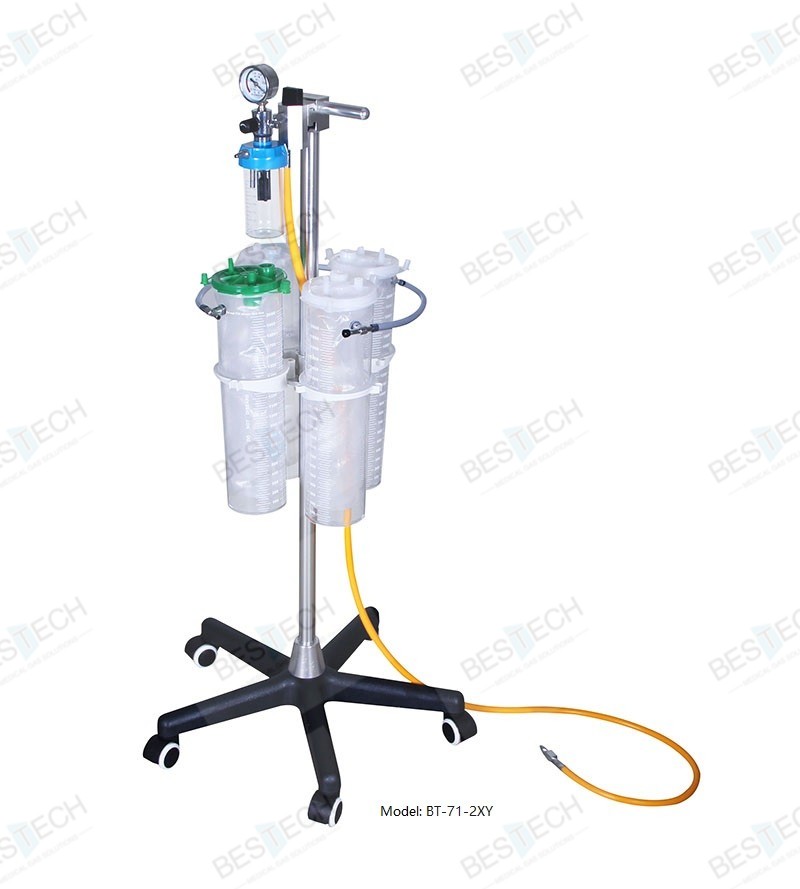

BT-71-2XY Secretion Collection Unit:

  Composed by suction bag (disposable), suction unit (repeat use), metal stand (repeat use) and connecting hose.

  Disposable suction  bag composed by plastic cover, plastic bag, check valve and catheter.

  There are two model suction bags: 2000ml white without overflow valve, and 2000ml green with overflow valve.

  Need co-work with suction unit.

  Optional for single, double, triple or quadruple bottles.
