Area Valves Service Unit

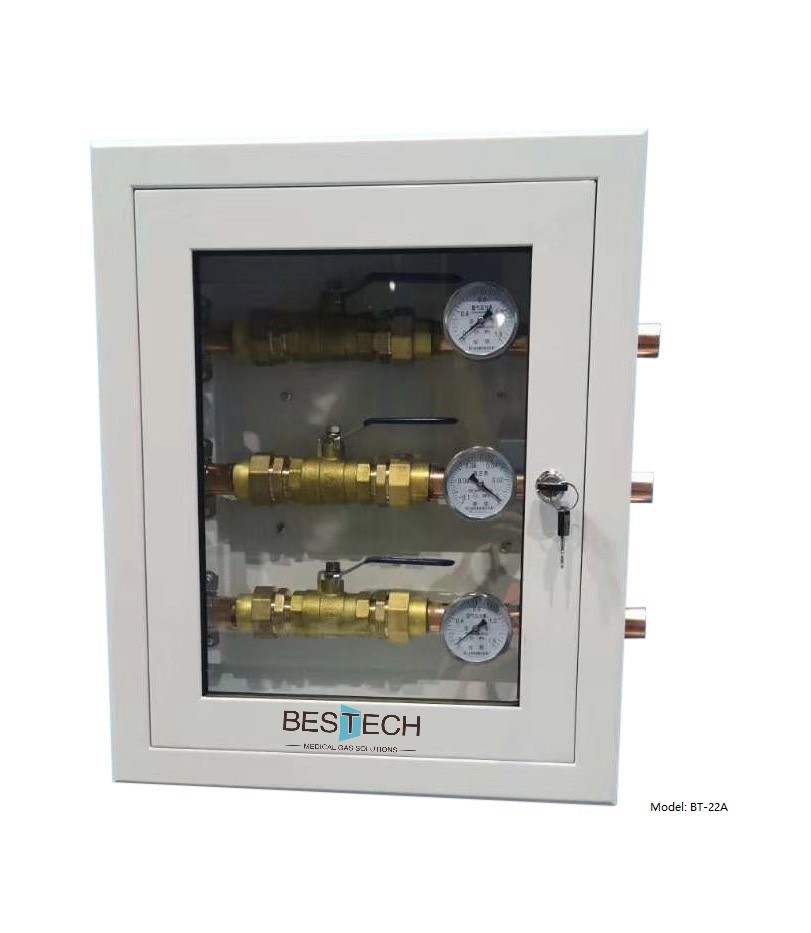

BT-22A Area Valves Service Unit:

Cabinet made up of 1.0mm steel panel.

High quality brass shut off valves.

High quality pressure gauges.

Factory welded with 8-15mm degreased copper pipes.

Available at 1-7 gases

With transparent glass door, easy to be broken for an emergency situation.

Easy to be wall mounted.

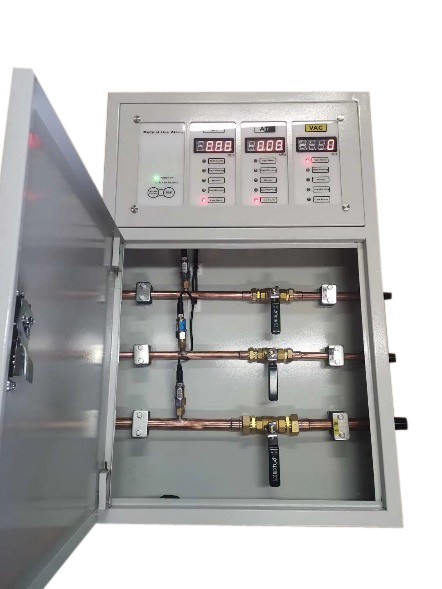

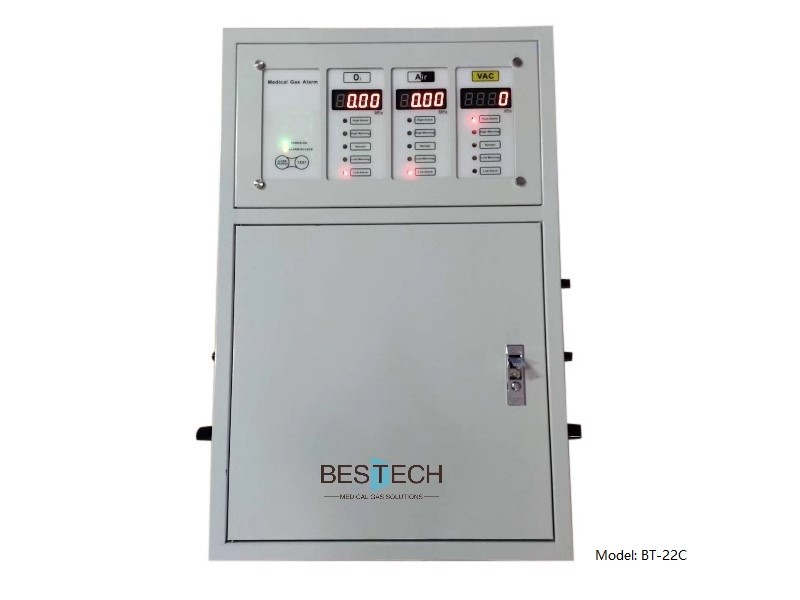

BT-22C AVSU combined with alarm panel:

Cabinet made up of 1.0mm steel panel.

High quality brass shut off valves.

High quality pressure sensors transfer pressure data to the alarm panel.

Factory welded with 8-15mm degreased copper pipes.

Available at 1-7 gases

Easy to be wall mounted.

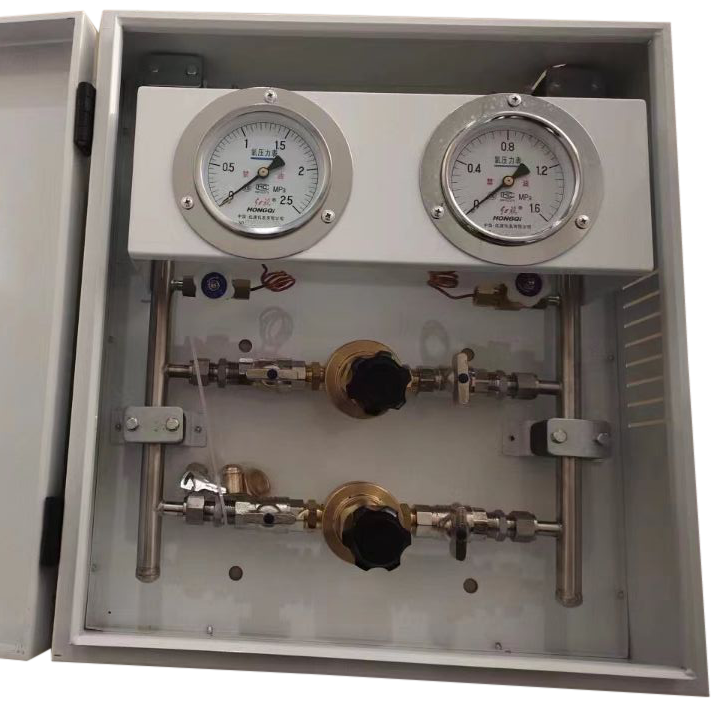

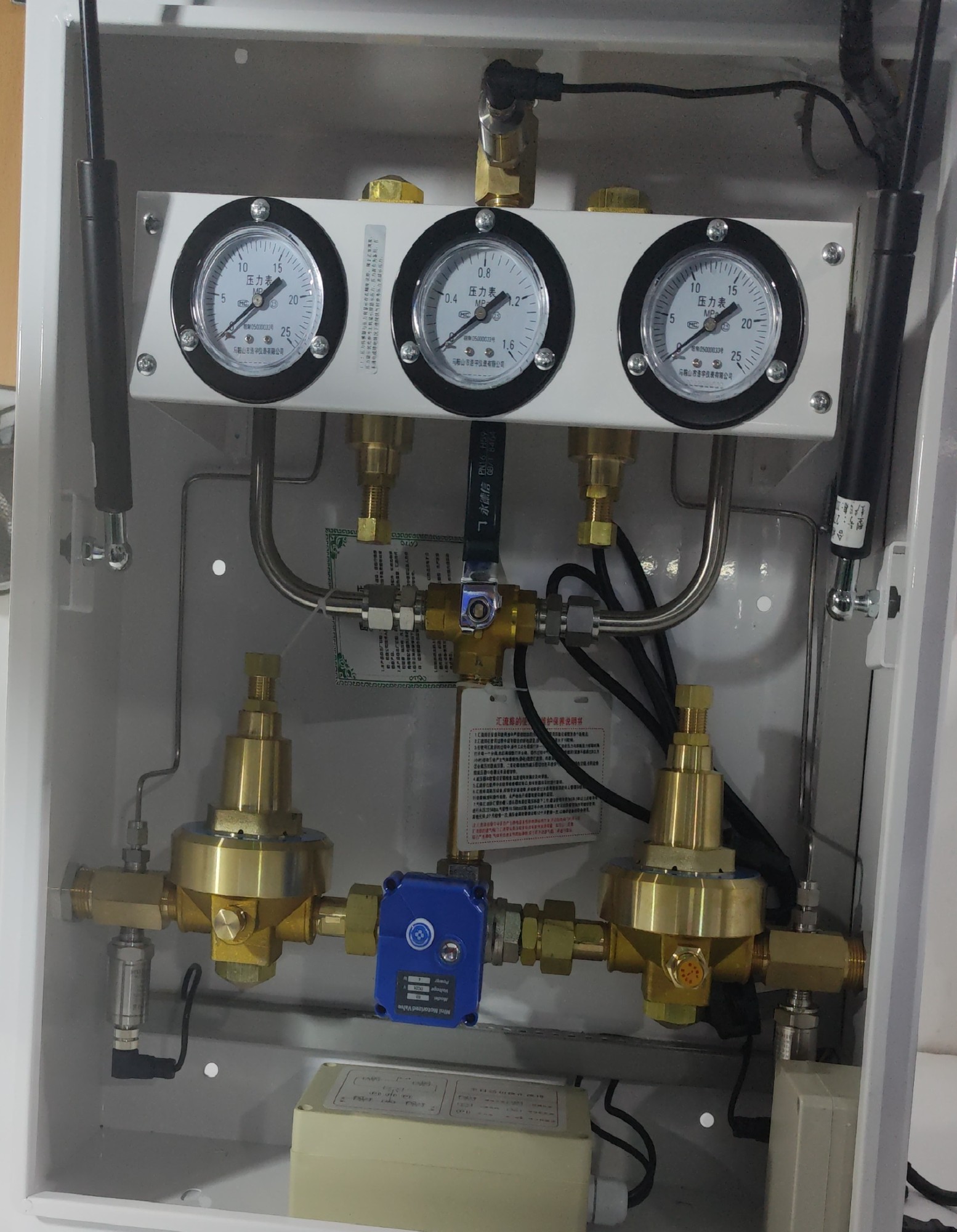

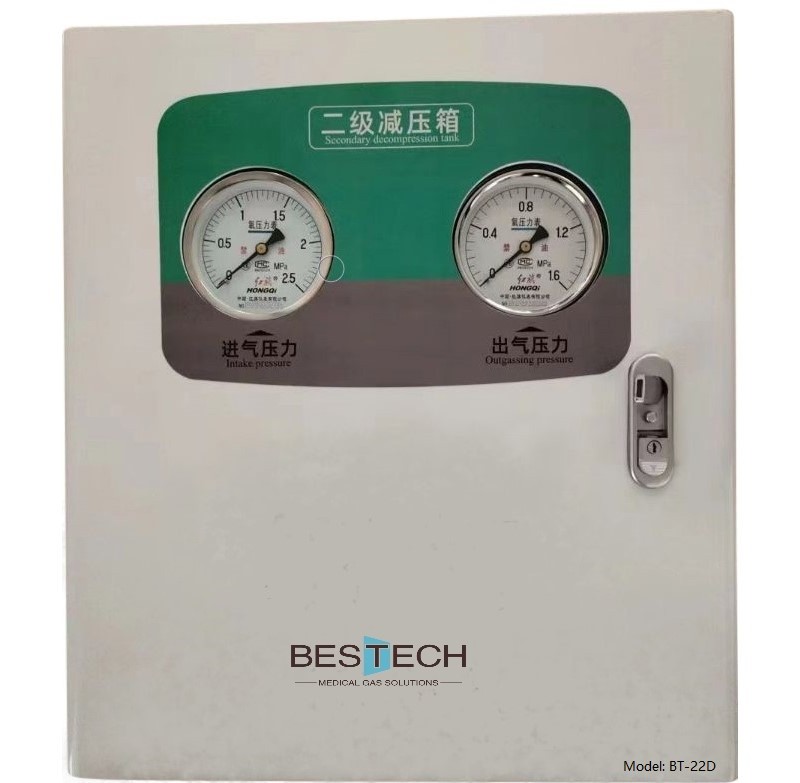

BT-22D Medical Gas Decompressor:

Humidity scope: 10% - 90%

Gas volume: 20M3/H

Outlet pressure scope: 4-5bar

Inlet pressure: 8-12 bar

Gas: O2, 350L/L

Working Environment: -10 ~ 40℃

Designed as one route working, one standby.

Cabinet size: 450x400x160mm

With 2sets regulators, 2pcs shut off valves, 2pcs pressure gauges, with pressure release valve.

Made up of 1.0mm steel panel, with color painting treatment.

Pipe is 19mm dia stainless steel
