Medical/Dental/Surgical Air Plant

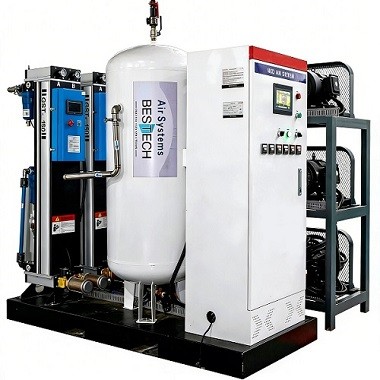

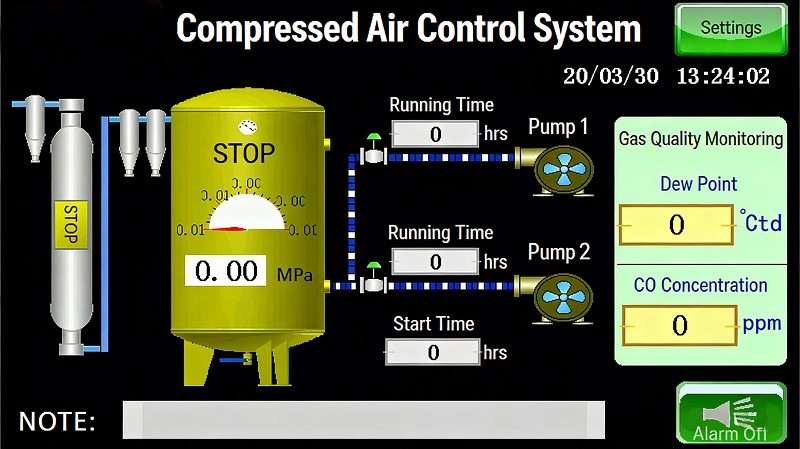

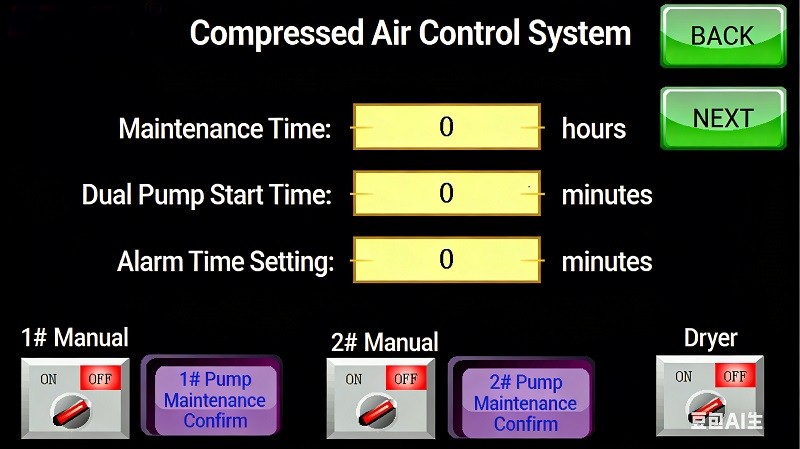

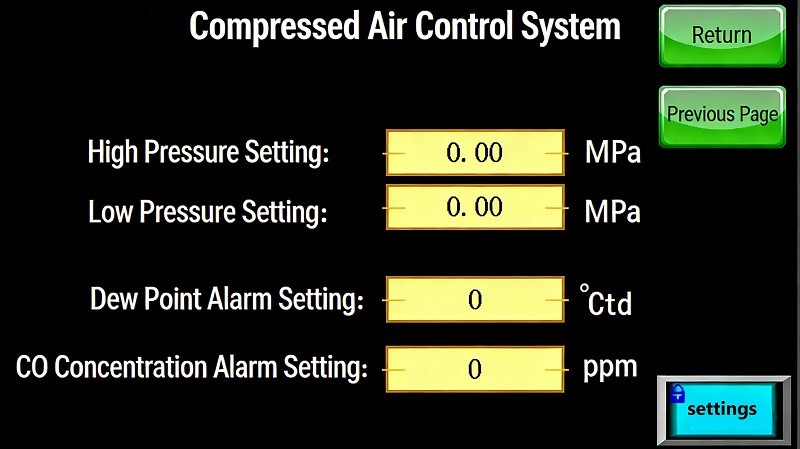

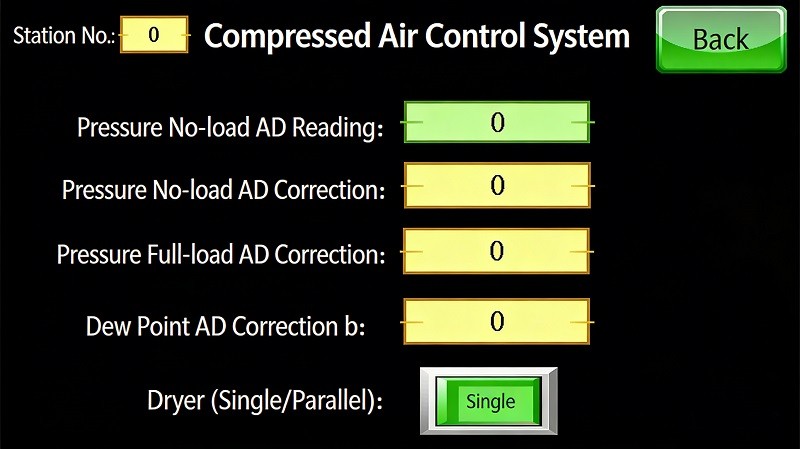

The BT-GA series air compressor unit complies with CE and ISO13485 standards and includes two or more oil-free scroll compressors (multiple in operation, one as backup). The system is suitable for three-phase power supply, 380V, 50Hz operating environment. It employs PLC and touchscreen control, and is equipped with a three-stage filtration system, an automatic drain valve (eliminating the need for manual drainage), an adsorption dryer, two pressure sensors (one in operation, one as backup), a pressure dew point alarm, a carbon monoxide concentration alarm, manual ball valves, check valves, an automatic control box, a 300-liter carbon steel buffer tank, and a connecting piping frame, etc.
