TD-928 Nurse Call System Component:

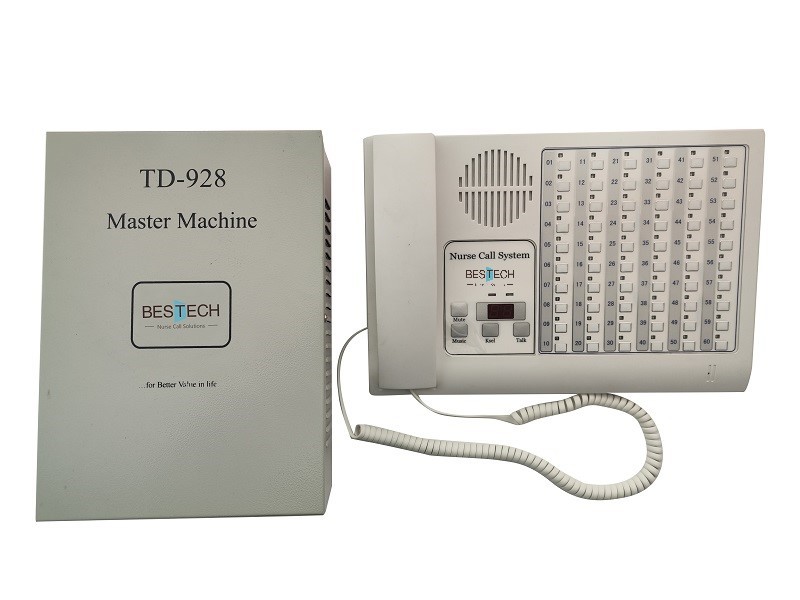

1.Master Unit
2.Desktop Station

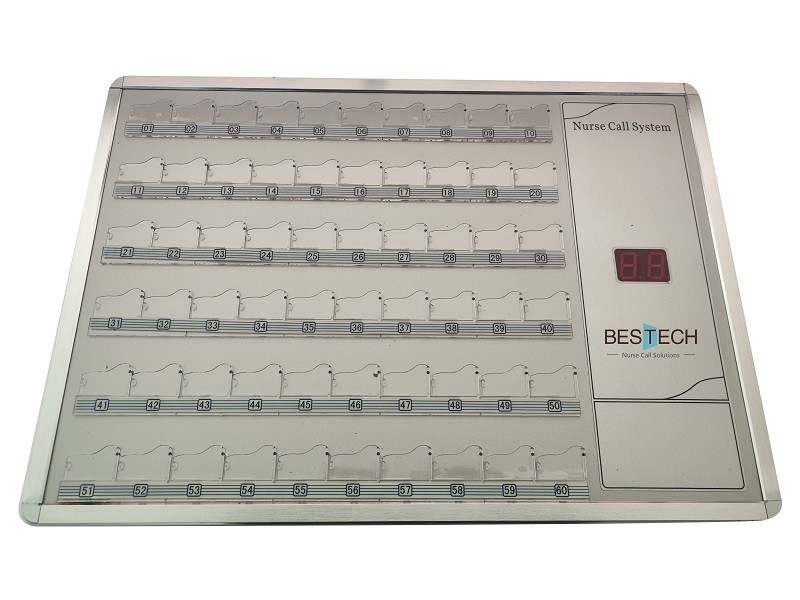

3.Wall Mount Station

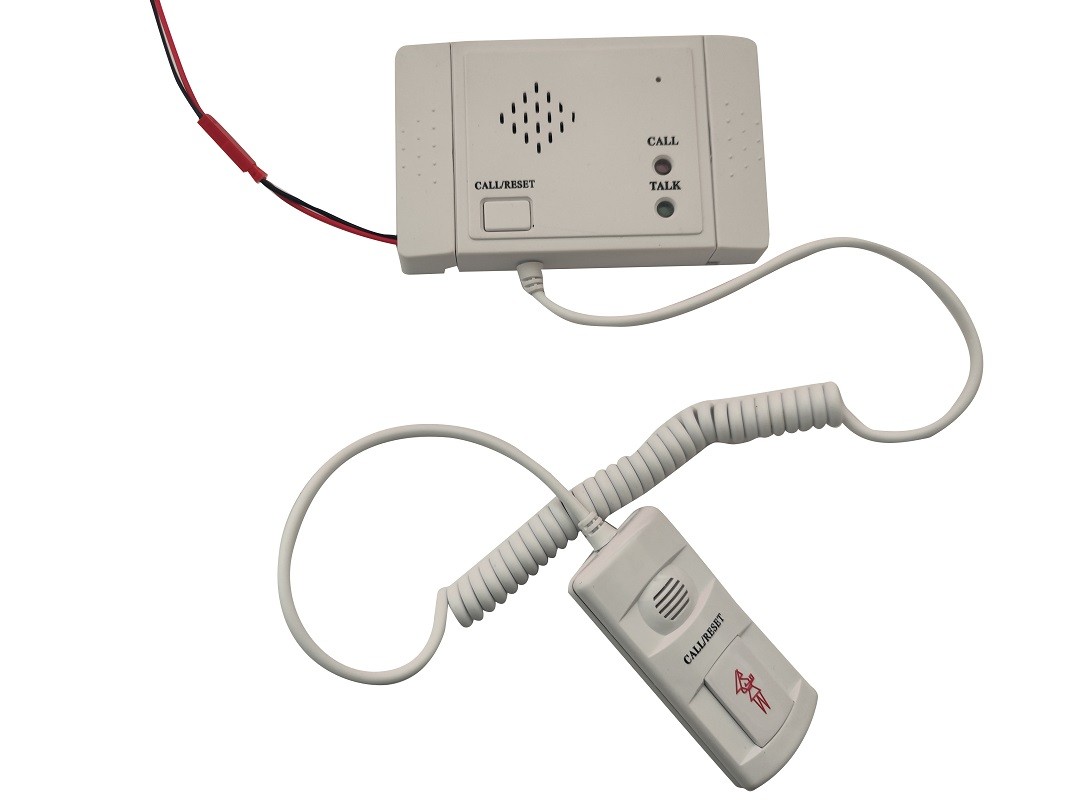

4.Patient Unit

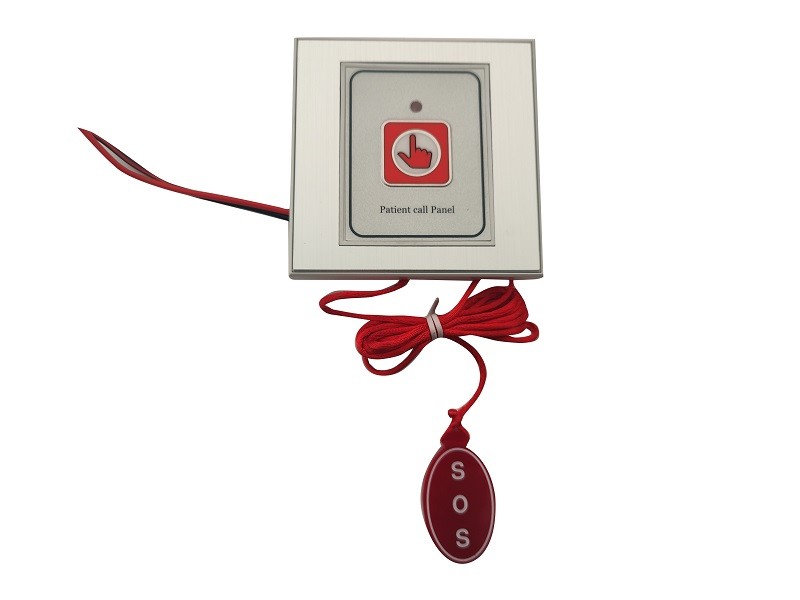

5.Emergency Call Button

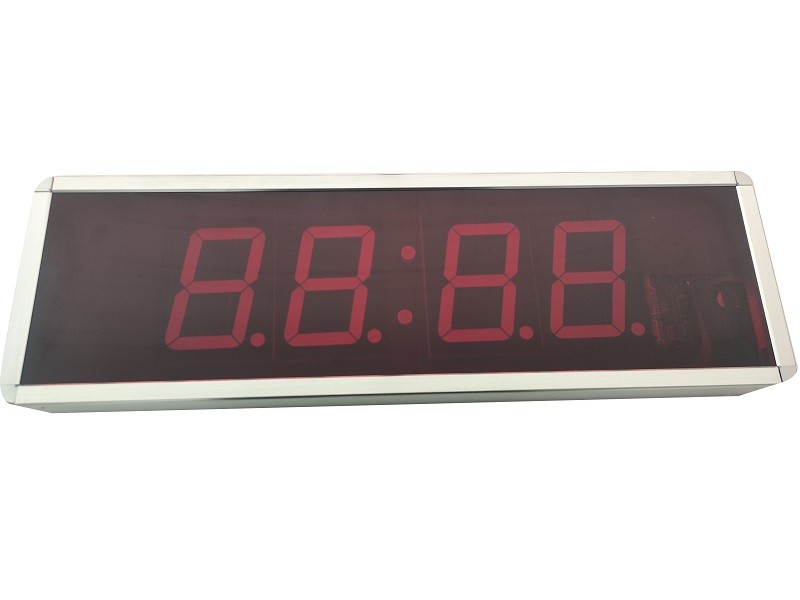

6.Display Panel
7.Door Alarm Light
System Main Parameters:
1：Working Temperature: -5℃～40℃
2：Moisture: ≤80％
3：Power supply: 200～240VAC 50Hz
4：Bus working Voltage: 24V DC
5：Static Output Consumption: <15W
6: Patient unit Standby Current: ≤250ua
7: Patient unit Working Current: ≤50ma
8：System Capacity: 99 patient units.
9：Maximum wiring distance: 1000M
10：Distortion: ≤10％
TD928 Series Wired Nurse Call System has been proved to be a durable call system with the features of easy installation, easy maintenance and highly stability.
Unlike those complicated touch screen call systems, we believe easy installation, easy maintenance and cost saving are the essential points for a hospital nurse call system.

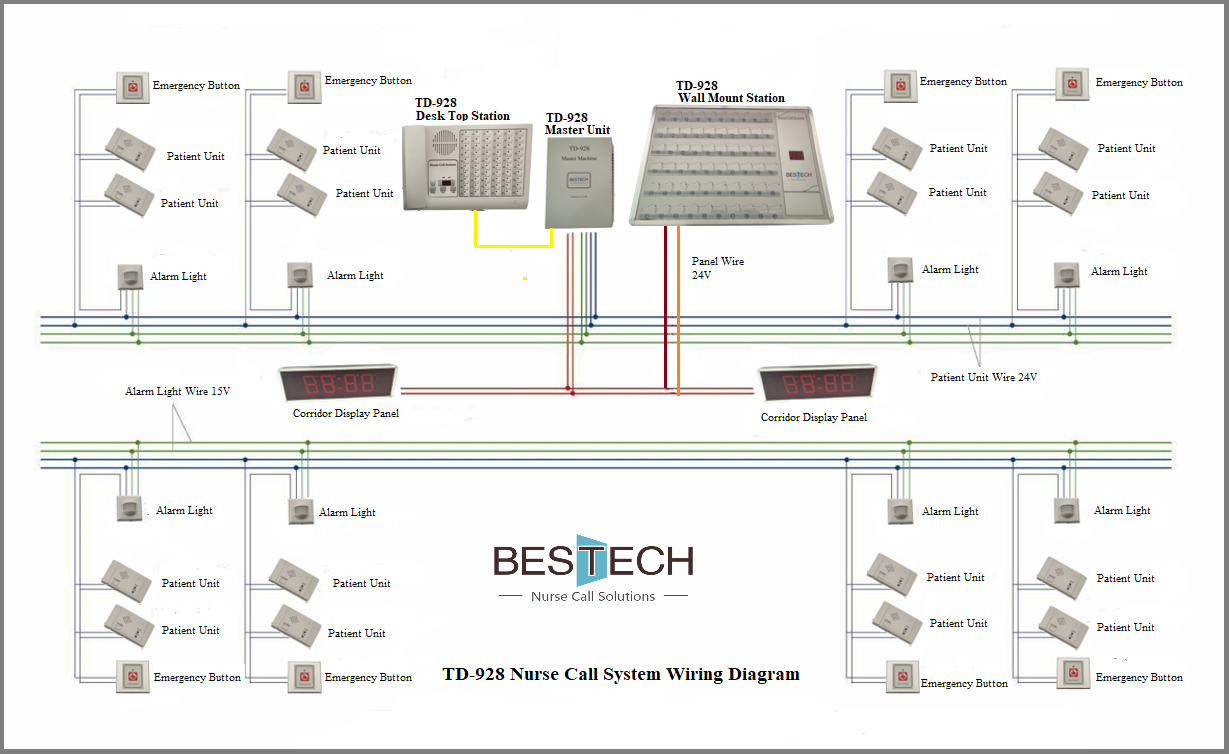

Our nurse call system is mainly composed of master station, desktop panel, wall mount panel, corridor display screen, over door indicating light, patient call button with hand set, water poof bathroom button, it enables both voice and light/sound signal communications between patient and nurse.
Our nurse call system is a simplified 2core wire connection system, much easier for wire connection and for future maintenance.
